Products Description
Cup Brush Wheel Size
|
D (mm/inch) |
M (mm) |
B (mm) |
T (mm) |
Rpm. max |
|
65/2-1/2'' |
10x1.25 10x1.5 5/8''-11CN |
22.2 |
24 |
12500 |
|
75/3'' |
10X1.25 10X1.5 14X2 5/8''-11NC |
22.2 |
25 |
12500 |
|
85/3-2/5'' |
10X1.5 14X2 5/8''-11NC |
22.2 |
25 |
12500 |
|
100/4'' |
14X2 5/8''-11NC |
22.2 |
30 |
8000 |
|
125/5'' |
14X2 5/8''-11NC |
22.2 |
33 |
6500 |
|
150/6'' |
14X2 5/8''-11NC |
22.2 |
33 |
4500 |
Specifications Details:
D (Diameter): Available in multiple sizes to suit various needs.
M (Inner Hole Size): Standard sizes include M10, M14, 5/8'' to fit different machines.
B (Brush Length): Different bristle lengths to match different depths of cleaning.
T (Thickness): Designed for high-strength performance in demanding environments.
Max RPM: Choose the appropriate RPM based on the specific size to ensure safety and efficiency.
Features & Benefits:

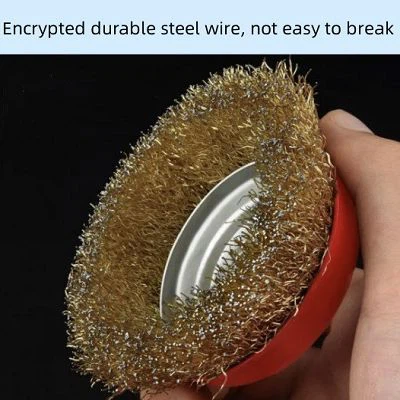

High Strength:The cup brush wheel is welded with high-strength steel wire, offering excellent strength and robust bearing capacity for long-term heavy-duty use.
Excellent Wear Resistance:The polished surface of the cup brush wheel ensures outstanding wear resistance, enhancing its longevity under continuous use.
Easy Installation:With a simple structure, the cup brush wheel is easy to install, reducing installation time and difficulty for workers.
Long Service Life:Due to its high strength and wear resistance, this cup brush wheel offers a longer lifespan, reducing replacement frequency and maintenance costs.
Products applications
Metalworking: Ideal for removing rust, oil, paint, burrs, and welds from metal surfaces.
Aerospace: Used for precise surface cleaning and polishing of aerospace components.
Shipbuilding: Cleans ship hulls by removing corrosion and contaminants, ensuring long-term performance.
Automotive Industry: Prepares metal surfaces for coating by removing welding residue and improving finish quality.
Oil, Construction, and Installation: Suitable for surface cleaning of large installations, enhancing overall project quality.
Common Issues & Adjustment Methods:
Grinding Force Too Low:
Solution: Increase the brush diameter, raise the brush speed, shorten the bristle length, use different bristle material, and increase bristle density.
Grinding Force Too High:
Solution: Reduce the brush diameter, lower the brush speed, lengthen the bristles, or replace the bristle material.
Low Workpiece Finish:
Solution: Increase the diameter, boost the speed, or change the bristle material.
High Workpiece Finish:
Solution: Reduce the diameter, decrease the speed, or replace the bristle material.
Bristle Breakage:
Solution: Lower the speed, reduce pressure, and decrease the ambient temperature while using the wheel.
Excessive Vibration:
Solution: Check the dynamic balance of the cup brush wheel and ensure the machine is stable.
Why Choose Our Cup Brush Wheels?
Superior Durability: Our Cup Brush Wheels Are Made With High-Quality Steel And Advanced Manufacturing Processes, Ensuring Long-Lasting, Reliable Performance.
Efficient Cleaning: The precise design ensures that our brush wheels effectively remove rust, stains, and coatings, providing an improved surface finish.
Wide Application: Suitable for a range of industries, our cup brush wheels meet diverse cleaning needs and help improve work quality.
