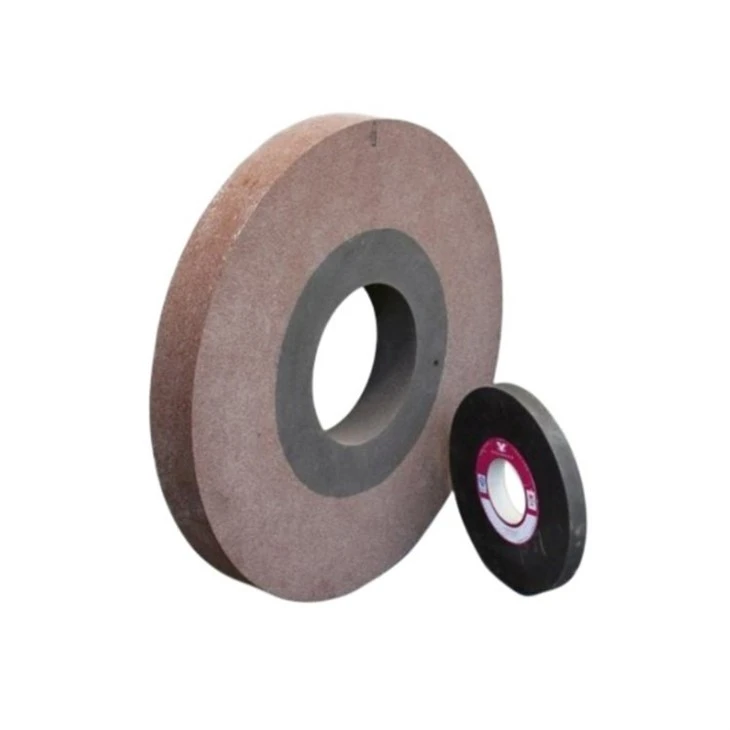

Roller Grinding Wheel

Roller Gridnign Wheel Size

1. Strong wear resistance: Roller grinding wheel is made of high hardness and strength materials, which can withstand high strength working environment.

2. High precision: The manufacturing precision of roller grinding wheel is very high, which can ensure its accuracy and repeatability.

3. Safety and reliability: strictly control the quality of materials in the manufacturing process of roller grinding wheel to ensure that there will be no safety problems during use.

4. Long life: roller grinding wheel has a long service life, which can save cost and improve production efficiency.

5. Strong pertinence: roller grinding wheel can be customized according to different rolling objects and processing needs, to meet the requirements of different customers.

Roller grinding wheel is mainly used for rolling metal bar, wire and other products, which can effectively improve the processing precision and surface finish of coil steel, suitable for a variety of different processing scenarios. It is suggested that factors such as machining object, machining fineness and machining specification should be considered when selecting roller grinding wheel.

When using the roller grinding wheel, attention should be paid to several points.

Firstly, the user should select the appropriate grinding wheel according to the material and hardness of the rolls to be ground. Secondly, the grinding wheel should be installed properly to ensure smooth operation and avoid accidents. Finally, the user should wear protective equipment such as goggles and gloves to ensure safety during the grinding process.

In conclusion, the roller grinding wheel is an essential tool in the manufacturing process of iron and steel, paper, and textile industries. Its outstanding performance and quality make it a highly recommended tool for those who seek to improve their productivity and quality. However, proper use and maintenance are crucial to ensure the safety and efficiency of the workflow.

Roll grinding  wheel installation steps:

l. Confirm that the power supply of the grinding machine is turned on, and check whether the oil pressure of the grinding wheel spindle is normal. It is not allowed to install the spindle under non-liquid pressure protection.

2. Lift the grinding wheel with the crane to the top of the grinding wheel spindle side of the roll grinder, and check the cone of the grinding wheel spindle to ensure that it is clean.

3, the lowering crane slowly put down the grinding wheel. Align the inner hole of the wheel flange with the sand wheel shaft.

4. Push the grinding wheel into the spindle slowly by hand, and do not force the spindle cone.

5. Use special tools to tighten the positioning sleeve and confirm that the grinding wheel is fastened to the spindle.

6. Then remove the special tools. Remove the grinding wheel spreader, start the crane and leave.

7. Remove the dirt on the grinding wheel protective cover, then close the grinding wheel protective cover, and tighten the protective cover bolt.

8. Operate the grinder manually.

9, start the grinding wheel, first rotate at a low speed, and then rotate at a maximum speed of more than 30-50% of the grinding wheel,

10. Observe whether the rotation of the grinding wheel is normal, whether the grinding wheel has axial movement and abnormal ringing phenomenon, and the rotation time of the grinding wheel should last 3-5 minutes.

11. In the roll grinder industrial man-machine control interface, select the dynamic balance icon on the manual screen to start the grinding wheel rotation. At the same time, pinch the dynamic balance adjustment block in the center of the grinding wheel by hand and observe the dynamic balance table. When the pointer is leaning towards the zero position, the balance block is loosened and the grinder dynamic balance is completed, and the grinding procedure can be entered.

1. Customization service: We can provide customized solutions according to the specific requirements of customers, such as different types, sizes, and specifications of grinding wheels.

2. Technical support: We provide technical support and training services for customers to help them improve their grinding efficiency and quality.

3. After-sales service: We offer timely and effective after-sales services, such as maintenance, repair, and replacement of products.
